Set up orchestration

Setting up Braze integration

Follow these steps to integrate a Braze Decisioning Studio agent with Braze’s orchestration capabilities (Braze’s services team will be available to help):

Step 1: Create an API key

Go to Settings > API Keys, then create a new key with the following permissions:

Permission	Purpose	Required?
/users/track	Updates custom attributes on user profiles, in addition to creating temporary user profiles when using test sends.	✓
/users/delete	Deletes temporary user profiles that were created while using test sends.	Only for test sends
/users/export/segment	Updates the available audience communications every morning by exporting the list of users from each selected segment.	✓
/users/export/ids	Retrieves a list of identifiers when targeting users using an external_id instead of a segment. Since Decisioning Studio doesn’t accept Personally Identifiable Information (PII), you’ll need to ensure your fields_to_export parameter returns only non-PII fields.
Only if using external_ids
/messages/send	Sends recommended variants at the recommended time using API Campaigns that are configured for Decisioning Studio’s experimenter.	✓
/campaigns/list	Retrieves the list of active campaigns and extracts available email content for experimentation.	✓
/campaigns/data_series	Exports aggregated campaign data to enable reporting, validation, and troubleshooting in Decisioning Studio, so you can compare reporting values and analyze baseline performance. While not required, this permission is recommended.
/campaigns/details	Retrieves HTML content, subject line, and image resources from existing Campaigns for experimentation.	✓
/canvas/list	Retrieves the list of active Canvases to extract available email content for experimentation.	✓
/canvas/data_series	Exports aggregated canvas data for reporting and validation, especially when BAU is orchestrated via Canvas. While not required, this permission is recommended.
/canvas/details	Retrieves HTML content, subject line, and image resources from existing Canvases for experimentation.	✓
/segments/list	Retrieves all existing segments as potential target audiences for the Decisioning Studio experimenter.	✓
/segments/data_series	Exports segment size information, which is shown in Decisioning Studio when selecting an audience.	✓
/segments/details	Retrieves segment details such as entry and exit criteria to help understand changes in audience size or performance.
/templates/email/create	Creates copies of selected base HTML templates with dynamic placeholders (Braze liquid tags) for experimentation, avoiding changes to the originals.	✓
/templates/email/update	Pushes updates to Decisioning Studio-created template copies when experimentation criteria change, such as call-to-actions.	✓
/templates/email/info	Retrieves information about Decisioning Studio-created templates in your Braze instance.	✓
/templates/email/list	Validates that templates were successfully copied over to your Braze instance.	✓

Step 2: Set up API-triggered campaigns

Set up an API-triggered campaign for each base template with API trigger properties for all optimized dimensions.

A base template is any template that the Decisioning Agent might use for orchestrating messages. A Decisioning Agent might have 1 base template or multiple, in which case choosing the right base template for each customer will be one of the decisions the agent personalizes.

Step 3: Configure re-eligibility

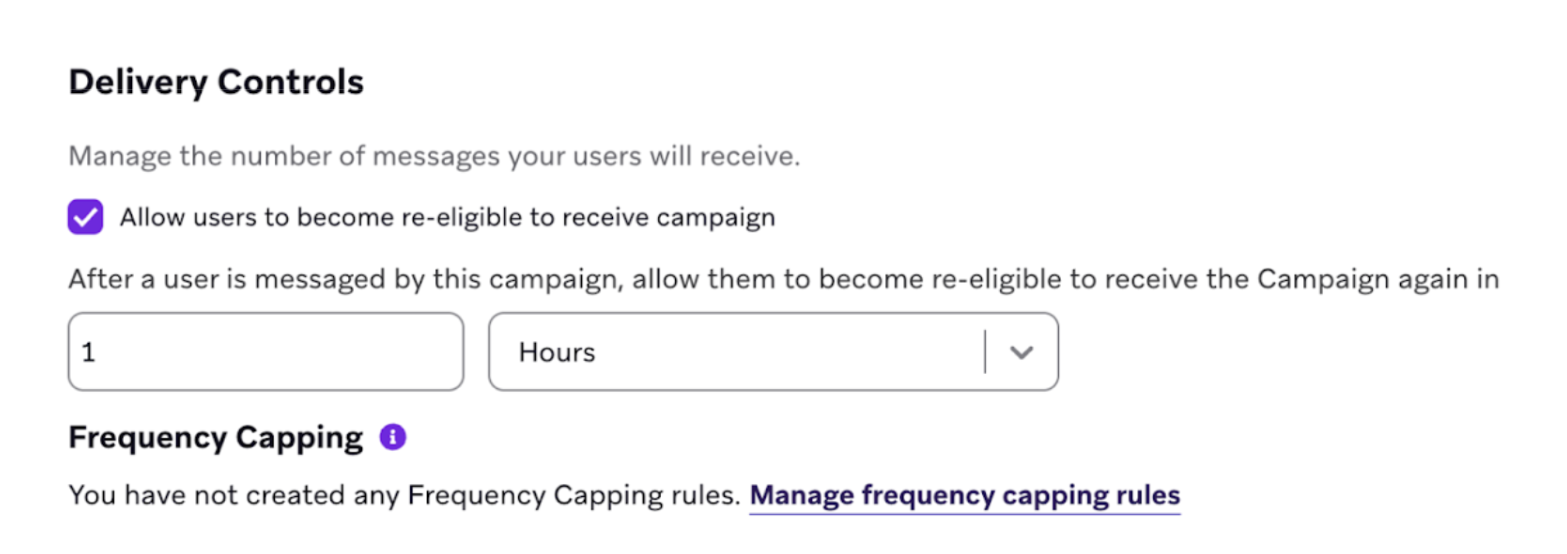

Ensure all API-triggered campaigns allow users to become re-eligible within 15 minutes.

Step 4: Add dynamic placeholders

These serve as dynamic placeholders for decisions that the Decisioning Studio agent is optimizing.

Example 1: Email Campaign

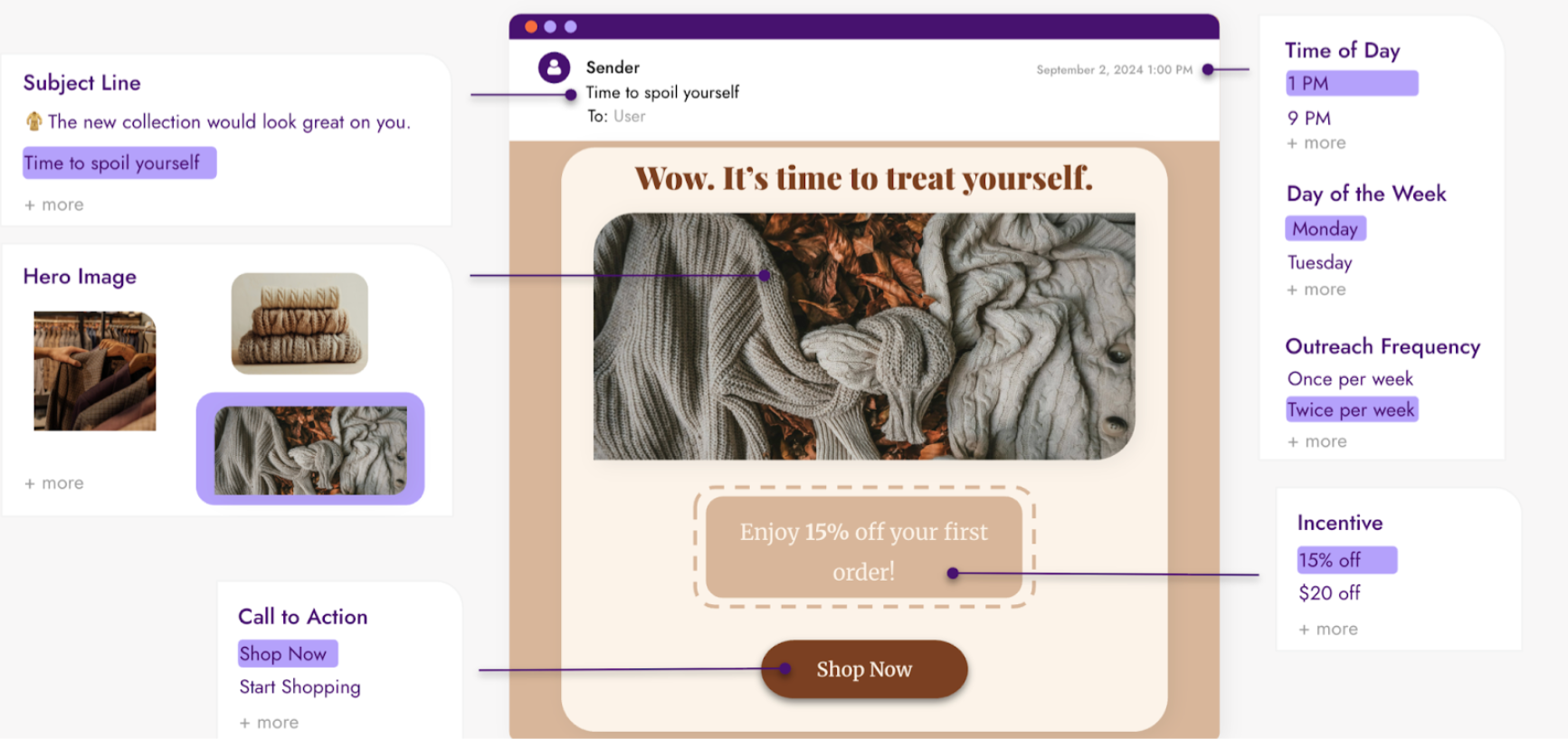

Suppose the Decisioning Studio agent is optimizing an email campaign. This might be configured like this:

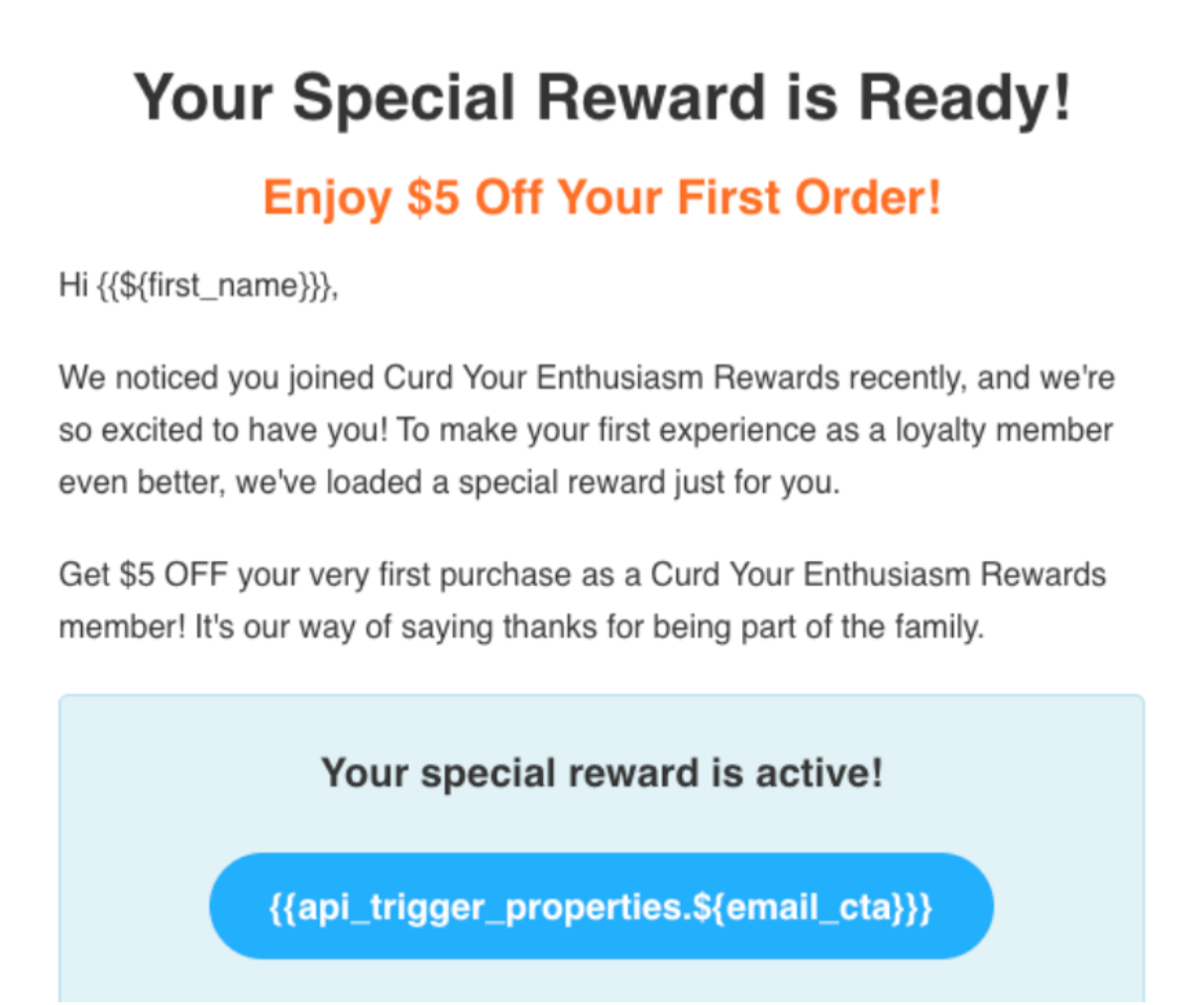

Supposing the agent is optimizing for choice of templates and Call to Action (CTA) message, then an API-triggered campaign should be created for each template, and the CTA section of one template might look like:

Example 2: Push campaign

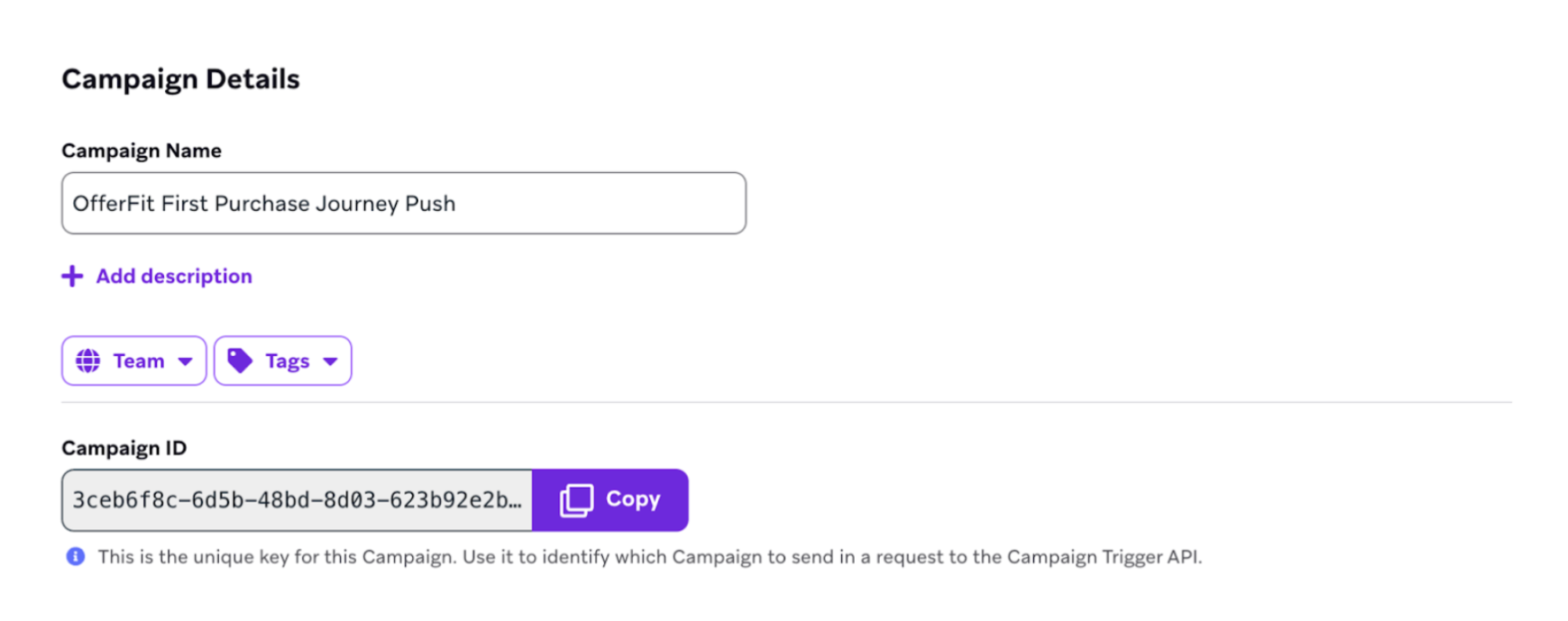

Suppose a Decisioning Studio agent is optimizing the message of a Push campaign. This might be configured like this:

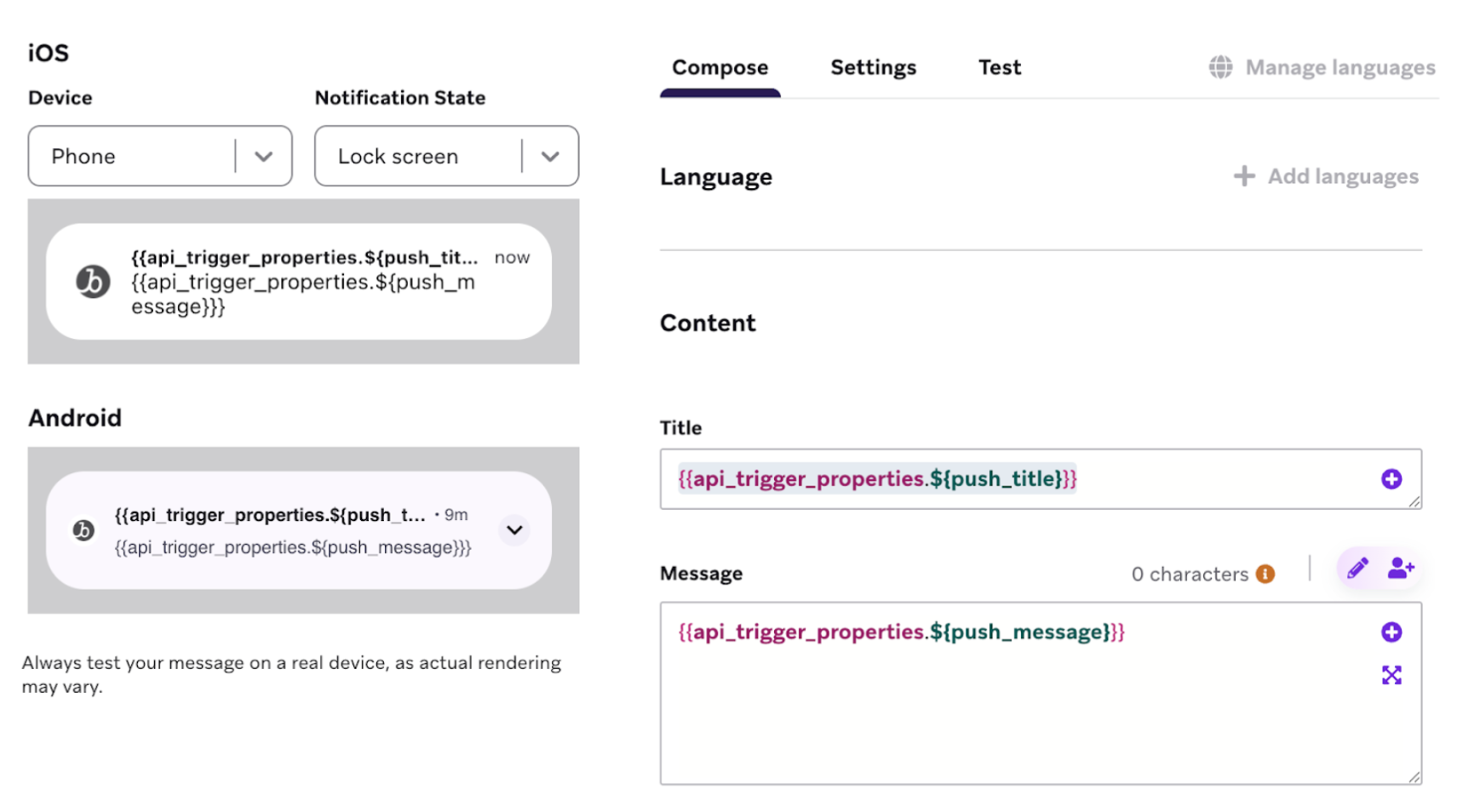

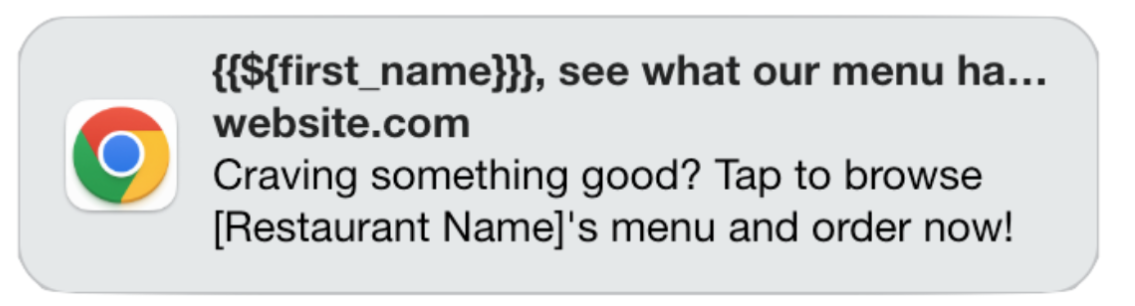

Resulting in the following message:

Example 3: SMS Campaign

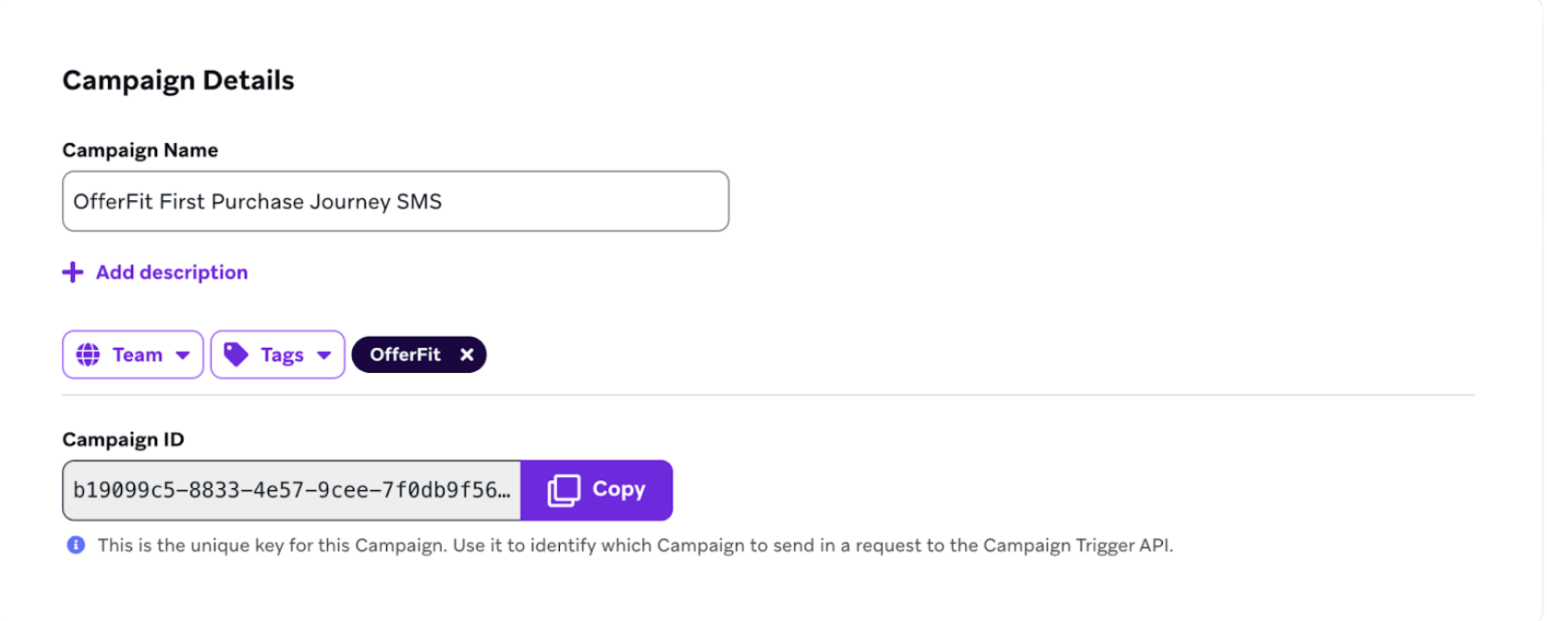

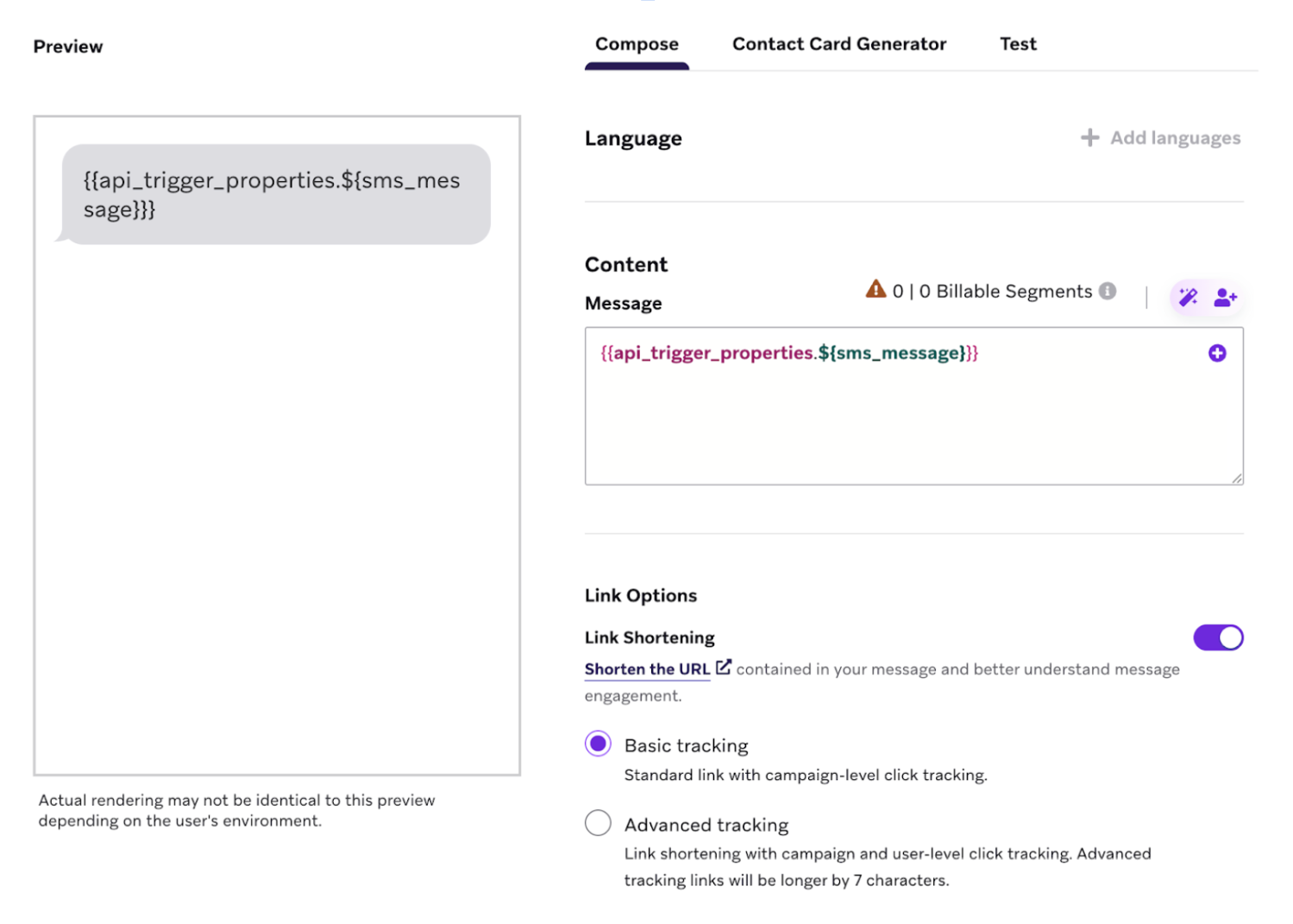

Suppose that the Decisioning Studio agent is optimizing for fields in an SMS campaign. This might be configured like this:

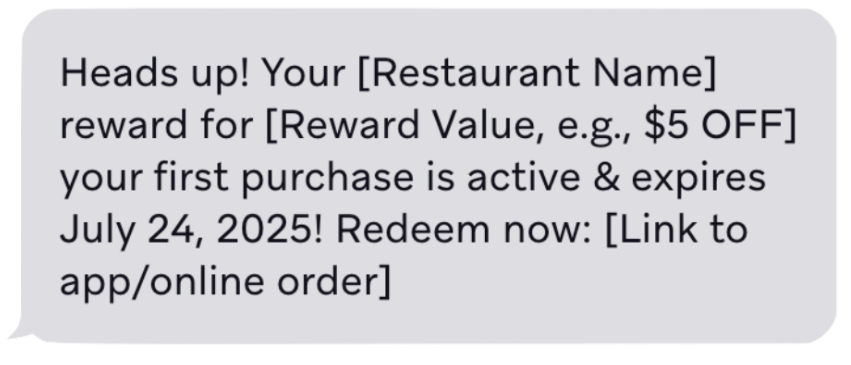

Resulting in the following message:
