Experiment Paths

Experiment Paths allow you to test multiple Canvas paths against each other and a control group at any point in the user journey. These components will enable you to track path performance to make informed decisions about your Canvas journey.

When you include a Experiment Paths component, it will randomly assign users to different paths (or an optional control group) you create. Portions of the audience will be assigned to different paths according to percentages you select, allowing you to test different messages or paths against each other and determine which is most effective.

Take advantage of Winning Paths to track performance over a period of time and then automatically send subsequent users down the path with the best performance.

Use cases

Experiment Paths are best suited for testing delivery, cadence, message copy, and channel combinations.

  • Delivery: Compare the results between messages sent with different time delays, based on user actions (Action Paths), and using Intelligent Timing.

  • Cadence: Test multiple messaging flows over a specific period. For example, you could test two different onboarding cadences:
    • Cadence 1: Send 2 messages in the user’s first 2 weeks
    • Cadence 2: Send 3 messages in the user’s first 2 weeks

    When targeting lapsing users, you can test the effectiveness of sending two win-back messages in a week versus sending just one.

  • Message copy: Similar to a standard A/B test, you can test different message copy to see which wording results in a higher conversion rate.

  • Channel combinations: Test the effectiveness of different message channel combinations. For example, you can compare the impact of using just an email versus an email combined with a push.

Create Experiment Paths

To create Experiment Paths, first add a step to your Canvas.

  • Canvas Flow: Drag and drop the component from the sidebar, or click the plus button at the bottom of a step and select Experiment Paths.
  • Original Canvas editor: Use the dropdown at the top of the new full step in your workflow to select Experiment Paths.

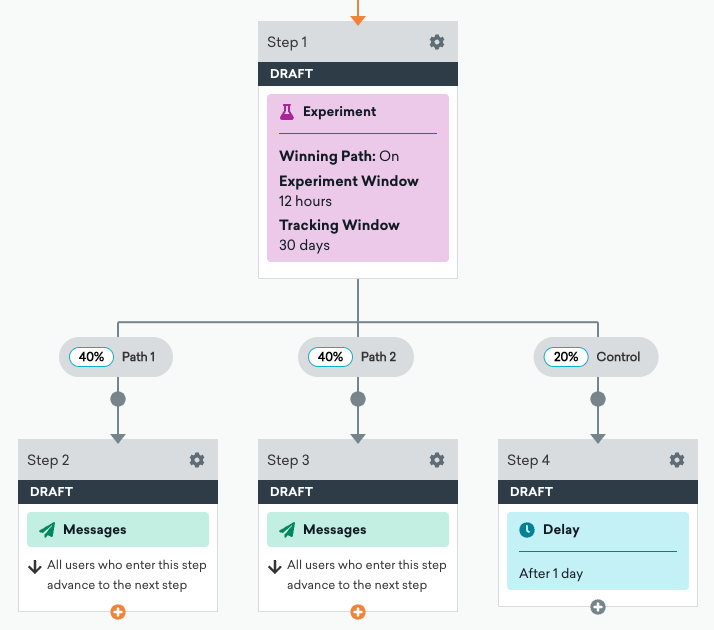

In the default configuration of this component, there are two default paths, Path 1 and Path 2, with 50% of the audience being sent down each path. Click the component to expand the Experiment Settings panel, and you’ll see the configuration options for the component.

Step 1: Choose the number of paths and audience distribution

You can add up to four paths by clicking Add Path and an optional control group by checking Add a Control Group. Using the percentage boxes for each path, you can specify the percentage of the audience that should go to each path and the control group. The provided percentages must add up to 100% to proceed. If you want to quickly set all the available paths (and control) to the same percentage, click Distribute Paths Evenly.

You can also choose whether users in the control group should continue down the Canvas or exit after the conversion tracking window for the Control Group Behavior. Optionally, you can add a description to explain to others what this Experiment Paths intends to test or include additional information that might be helpful to note.

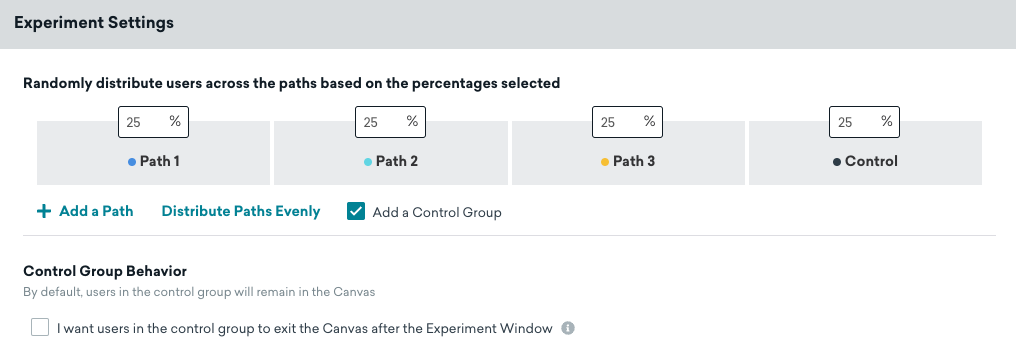

Experiment Settings where you can add paths and distribute the percentage of users in each path.

Step 2: Turn on Winning Path (optional)

Winning Path is similar to Winning Variant in campaigns, and lets you automate your A/B tests. When Winning Path is turned on, after a specified period of time, all subsequent users will be sent down the path with the highest conversion rate.

For more, refer to Winning Path.

Step 3: Select how long to track conversions

Experiment Paths will record users who enter each step and convert while in the assigned path. This will track all conversion events specified in the Canvas setup. Use the input box at the bottom of the panel to enter how many days (between 1 and 30) you’d like this experiment to track conversions. Note that the time window you specify here will determine how long conversions (specified in Canvas setup) will be tracked for Experiment Paths. The per-event conversion windows specified in Canvas setup will not apply to this component’s tracking.

Step 4: Create paths

Lastly, you must build your downstream paths. Select Done and return to the Canvas builder. Click the plus button under each path to begin creating journeys using the usual Canvas tools as you see fit, and launch the Canvas when you are ready.

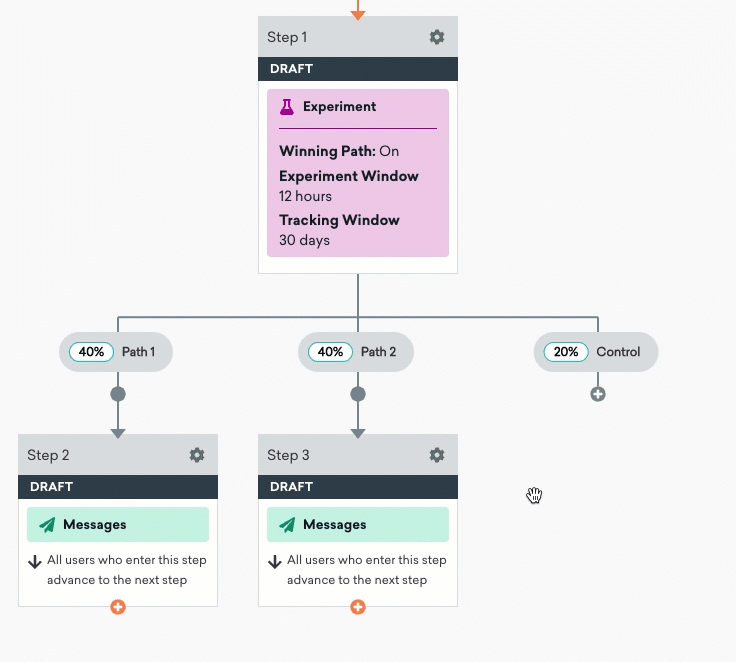

Adding steps to each path that splits from an Experiment Path component.

Keep in mind that paths and their downstream steps cannot be removed from a Canvas once created. However, once launched, you can modify the audience distribution across paths as you see fit. For example, if a day after launching a Canvas, you conclude that one path is superior to the rest based on the analytics, you can set that path to 100% and the others to 0%. Or, depending on your needs, you can continue sending users down multiple paths.

Tracking performance

Each path will display statistics in the Canvas Analytics view, just like any Canvas step.

From the Canvas Analytics page, click the Experiment Path to open a detailed table identical to the Analyze Variants tab to compare detailed performance and conversion statistics across paths. You can also export the table via CSV and compare percent changes for metrics of interest relative to the path or control you select.

Winning Path performance

If Winning Path was turned on, your analytics view is separated into two tabs: Initial Experiment and Winning Path.

  • Initial Experiment: Shows the metrics for each path during the experiment window. You can see a summary of how all the paths performed for the specified conversion events, and which path was selected as the winner.
  • Winning Path: Shows only the metrics for the Winning Path.
