Typeform
Typeform is an easy-to-use tool for collecting data, feedback, and more.
By integrating Braze and Typeform, you can:
- Update user profiles in Braze with data collected from their Typeform response
- Trigger messaging in Braze based on a user’s engagement with a typeform
- Personalize Braze messaging based on a user’s Typeform responses
Prerequisites
| Requirement | 설명 |
|---|---|
| Typeform account | 이 파트너십을 이용하려면 웹훅에 액세스할 수 있는 Typeform 계정이 필요합니다. |
| Braze Data Transformation | A Data Transformation URL is necessary to receive data from Typeform. |
Integration
1단계: Set up the Braze Data Transformation to accept Typeform’s webhooks
Braze 대시보드에서 데이터 설정 > 데이터 변환로 이동합니다.
변환 이름을 지정하려면 Create Transformation을 선택한 다음 편집 경험을 선택하세요.
템플릿 사용을 선택하여 데이터 변환 사용 사례를 포함한 템플릿 라이브러리를 탐색합니다. 또는 시작하기를 선택하여 기본값 코드 템플릿을 로드합니다.
아무것도 없는 상태에서 시작한다면, 변화를 위한 대상을 선택하세요. 템플릿 라이브러리에서 코드 템플릿을 여전히 삽입할 수 있습니다.
More on destinations
- 게시: 사용자 추적: 소스 플랫폼의 웹훅을 고객 프로필 업데이트로 변환합니다. 예를 들어 속성, 이벤트 또는 구매와 같은 것입니다.
- 넣기: 여러 카탈로그 항목 업데이트: 소스 플랫폼의 웹후크를 카탈로그 항목 업데이트로 변환합니다.
- 삭제: 여러 카탈로그 항목 삭제: 소스 플랫폼의 웹후크를 카탈로그 항목 삭제로 변환합니다.
- 패치: 여러 카탈로그 항목 편집: 소스 플랫폼의 웹후크를 카탈로그 항목 편집으로 변환합니다.
- 게시: API만을 통해 즉시 메시지를 전송하세요. 소스 플랫폼에서 웹후크를 변환하여 지정된 사용자에게 즉시 메시지를 전송합니다.
note:
추가 템플릿이나 목적지를 요청하시겠습니까? 제품 피드백을 남겨 보세요.

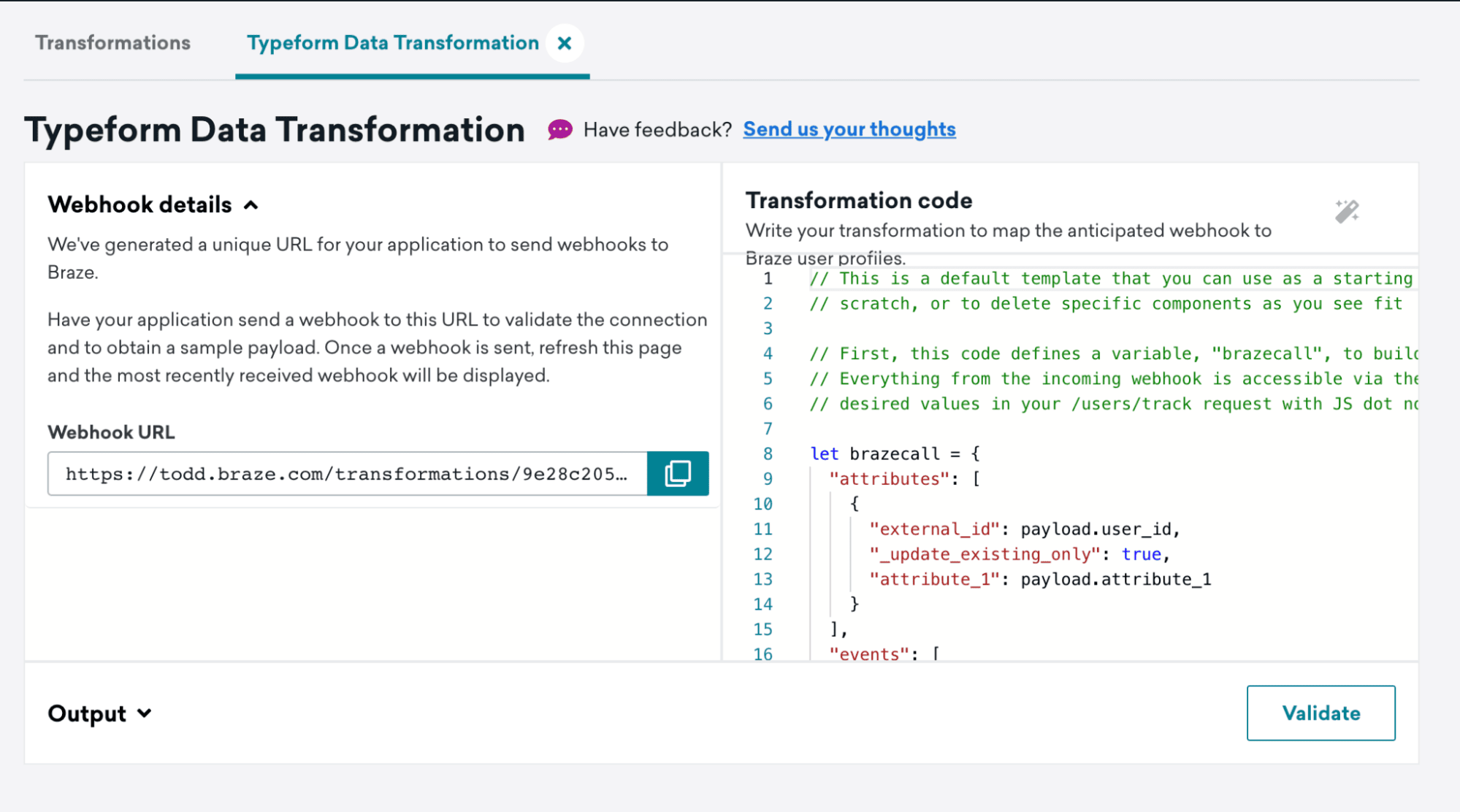

변환을 생성한 후 변환의 세부 정보를 볼 수 있습니다. 여기에서 웹훅 세부정보 아래에서 이 변환을 위해 수신된 가장 최근의 웹훅을 볼 수 있으며, 변환 코드 아래에 변환 코드를 작성할 수 있는 공간이 있습니다.
다음 단계에서 사용할 웹훅 URL을(를) 캡처하세요.
2단계: Set up Typeform webhooks
Follow the steps in Typeform’s webhooks documentation to set up a webhook.

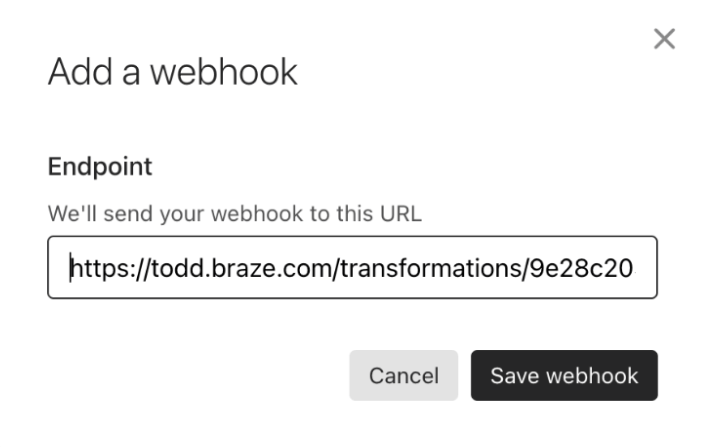

For step 4, add your Data Transformation webhook URL as the Destination URL

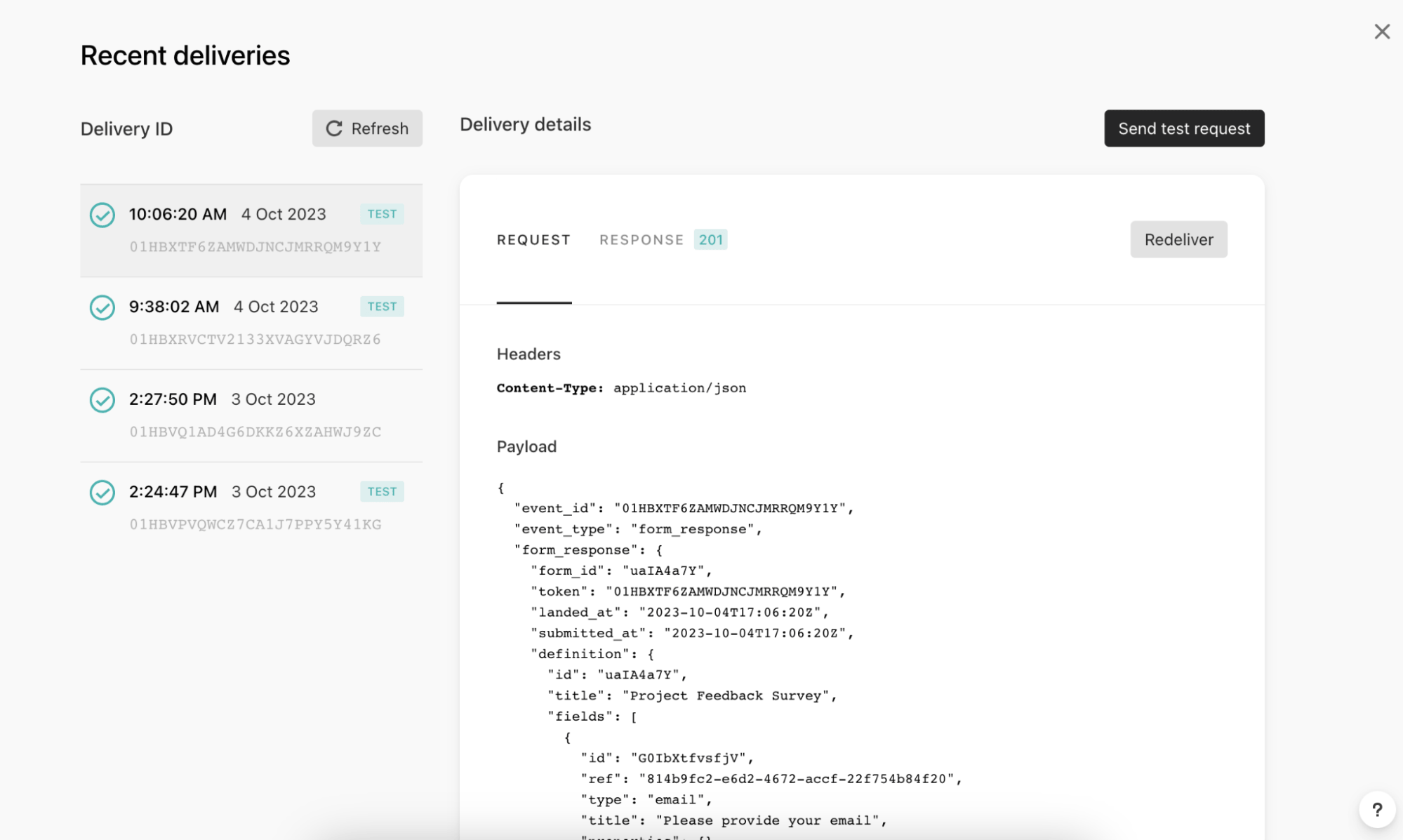

Send a test event to your Data Transformation by clicking View deliveries and then Send test request.
3단계: Write transformation code to accept your chosen Typeform events
이 단계에서는 Typeform에서 전송된 웹훅 페이로드를 JavaScript 객체 반환 값으로 변환합니다.

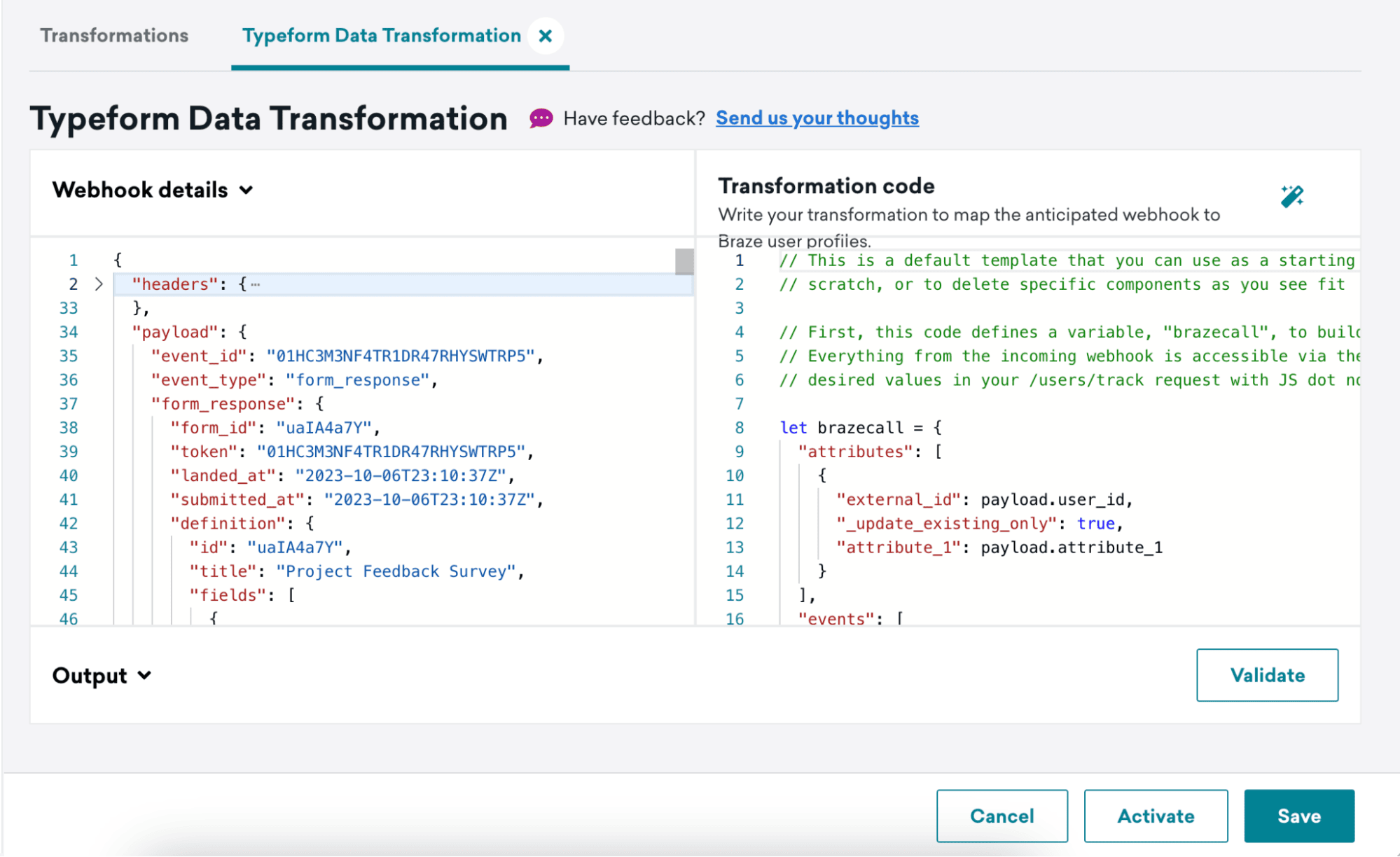

- Refresh your Data Transformation and make sure you can see the Typeform test payload in the Webhook Details.
- Update your Data Transformation code to support your chosen Typeform events.
- Click Validate to return a preview of your code’s output and to check if it’s an acceptable
/users/trackrequest. - Save and activate your Data Transformation.
Request body format
This return value must adhere to Braze’s /users/track request body format:
- Transformation code is accepted in the JavaScript programming language. Any standard JavaScript control flow, such as if/else logic, is supported.
- Transformation code accesses the webhook request body via the payload variable. This variable is an object populated by parsing the request body JSON.
- Any feature supported in our
/users/trackendpoint is supported, including:- User attributes objects, event objects, and purchase objects
- Nested attributes and nested custom event properties
- Subscription group updates
- Email address as an identifier
Example Typeform webhook payload
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
Content-Type: application/json
{
"event_id": "01HC3PTZN05GJWT0QDXXB2QV8F",
"event_type": "form_response",
"form_response": {
"form_id": "uaIA4a7Y",
"token": "7pctqdoqxg41to97pctqdibhqn6hqvto",
"landed_at": "2023-10-06T23:57:52Z",
"submitted_at": "2023-10-06T23:58:18Z",
"hidden": {
"user_id": "hidden_value"
},
"definition": {
"id": "uaIA4a7Y",
"title": "Project Feedback Survey",
"fields": [
{
"id": "G0IbXtfvsfjV",
"ref": "814b9fc2-e6d2-4672-accf-22f754b84f20",
"type": "email",
"title": "Please provide your email",
"properties": {}
},
{
"id": "lg82q3t0rK03",
"ref": "e1503b62-0241-4269-9902-5c539abf305e",
"type": "short_text",
"title": "What was your role in the project?",
"properties": {}
},
{
"id": "UXftY0tSmuDV",
"ref": "5b839dbb-566b-47de-a47e-b0914d9ccf7c",
"type": "opinion_scale",
"title": "How would you rate the overall performance of the team?",
"properties": {}
},
{
"id": "fE17bXVUEB4E",
"ref": "fd6be99d-1ed1-4a4d-b811-f6ecdd8fa9b6",
"type": "yes_no",
"title": "Did the project meet its intended outcomes?",
"properties": {}
},
{
"id": "NmVOQFuI0vv9",
"ref": "cd2b4176-db9a-49bb-a918-4463720bbc79",
"type": "multiple_choice",
"title": "Which area of the project do you think went well?",
"properties": {},
"choices": [
{
"id": "RvV3LaMEQ2eK",
"ref": "2d5e0913-afe9-491c-b31c-0648dd397d56",
"label": "Communication"
},
{
"id": "7iXmfpPMeQvz",
"ref": "7a7749d2-5cd6-4bf7-9726-65c7ab11ec83",
"label": "Planning"
},
{
"id": "1No85DZlvP6f",
"ref": "d7b7304a-776b-4630-8bee-7dc7ef9c9404",
"label": "Execution"
},
{
"id": "ruMnsZWjyalW",
"ref": "41dc926a-85af-4625-8a61-725fda35afda",
"label": "Problem Solving"
},
{
"id": "CexnFN3roprG",
"ref": "cfdd2da4-8c57-4ff1-b4c0-1a5262e2ff84",
"label": "Other"
}
]
},
{
"id": "ZJop9pvoObzk",
"ref": "ce903cda-7e27-4b4c-9fa8-0623c47c61b4",
"type": "multiple_choice",
"title": "Which area of the project do you think could be improved?",
"properties": {},
"choices": [
{
"id": "YQLArFf0Wks5",
"ref": "09fa30c7-7bdc-4753-971e-0d922638d023",
"label": "Communication"
},
{
"id": "iGjaELgfnChw",
"ref": "61820c89-3426-464d-b031-c06de5125fd5",
"label": "Planning"
},
{
"id": "2EyI5tozFxro",
"ref": "c35f71b2-2a6d-4488-a1ba-87c2e711ce19",
"label": "Execution"
},
{
"id": "VGtsIHBLAhME",
"ref": "6c171a9a-9324-4f7d-adb9-290bd701efe9",
"label": "Problem Solving"
},
{
"id": "lVdV7MIL1anS",
"ref": "faba551f-4e6b-4377-9f74-11ca4fcc8ed5",
"label": "Other"
}
]
},
{
"id": "hcCNsLUHGXgv",
"ref": "d1ae8537-0d5a-4ca8-bb6b-f8057f04d7e2",
"type": "opinion_scale",
"title": "How satisfied were you with the level of communication during the project?",
"properties": {}
},
{
"id": "dBqPlgeKejN2",
"ref": "e2c884c1-0d92-4f18-9833-79dff0b3eef2",
"type": "nps",
"title": "How likely are you to recommend Braze for customer engagement services?",
"properties": {}
},
{
"id": "vLdpFmCmulF5",
"ref": "a86e48ec-6d10-49fc-ac03-4ac1aad4bfec",
"type": "dropdown",
"title": "In which country was the project executed?",
"properties": {}
}
],
"endings": [
{
"id": "LUpVm67y72vb",
"ref": "30c03bdf-80b3-45f5-8307-df8ca49046b1",
"title": "Thank you for taking the time to complete our survey!",
"type": "thankyou_screen",
"properties": {
"button_text": "Create a typeform",
"show_button": true,
"share_icons": true,
"button_mode": "default_redirect"
}
}
]
},
"answers": [
{
"type": "email",
"email": "[email protected]",
"field": {
"id": "G0IbXtfvsfjV",
"type": "email",
"ref": "814b9fc2-e6d2-4672-accf-22f754b84f20"
}
},
{
"type": "text",
"text": "Project",
"field": {
"id": "lg82q3t0rK03",
"type": "short_text",
"ref": "e1503b62-0241-4269-9902-5c539abf305e"
}
},
{
"type": "number",
"number": 9,
"field": {
"id": "UXftY0tSmuDV",
"type": "opinion_scale",
"ref": "5b839dbb-566b-47de-a47e-b0914d9ccf7c"
}
},
{
"type": "boolean",
"boolean": true,
"field": {
"id": "fE17bXVUEB4E",
"type": "yes_no",
"ref": "fd6be99d-1ed1-4a4d-b811-f6ecdd8fa9b6"
}
},
{
"type": "choice",
"choice": {
"id": "ruMnsZWjyalW",
"label": "Problem Solving",
"ref": "41dc926a-85af-4625-8a61-725fda35afda"
},
"field": {
"id": "NmVOQFuI0vv9",
"type": "multiple_choice",
"ref": "cd2b4176-db9a-49bb-a918-4463720bbc79"
}
},
{
"type": "choice",
"choice": {
"id": "lVdV7MIL1anS",
"label": "Other",
"ref": "faba551f-4e6b-4377-9f74-11ca4fcc8ed5"
},
"field": {
"id": "ZJop9pvoObzk",
"type": "multiple_choice",
"ref": "ce903cda-7e27-4b4c-9fa8-0623c47c61b4"
}
},
{
"type": "number",
"number": 8,
"field": {
"id": "hcCNsLUHGXgv",
"type": "opinion_scale",
"ref": "d1ae8537-0d5a-4ca8-bb6b-f8057f04d7e2"
}
},
{
"type": "number",
"number": 6,
"field": {
"id": "dBqPlgeKejN2",
"type": "nps",
"ref": "e2c884c1-0d92-4f18-9833-79dff0b3eef2"
}
},
{
"type": "choice",
"choice": {
"id": "KESjdqLseWmC",
"label": "Brazil",
"ref": "250210d9-33f6-4734-8ec6-06005a8ef66d"
},
"field": {
"id": "vLdpFmCmulF5",
"type": "dropdown",
"ref": "a86e48ec-6d10-49fc-ac03-4ac1aad4bfec"
}
}
],
"ending": {
"id": "LUpVm67y72vb",
"ref": "30c03bdf-80b3-45f5-8307-df8ca49046b1"
}
}
}
Data Transformation use cases
The following are example templates built using our example Typeform webhook payload. These templates can be used as a starting point. You can start from scratch or delete specific components as you see fit.

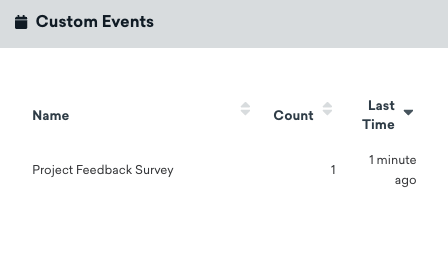

In these example templates, we are logging a custom event to the Braze profile. 유형 양식의 제목은 커스텀 이벤트 이름으로 전달되고 유형 양식 결과는 이벤트 속성정보로 전달됩니다. These example templates do not account for the Calendly, File Upload, or Payment question types in Typeform.
Use case: Email as identifier
In this example template, we are using an email address (captured from an email address question within the typeform) as the identifier.
note:
If you intend to use an email address as an identifier, review our frequently asked questions for the /users/track endpoint for more information on expected behavior.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
/* In the Typeform webhook payload each question is stored as a “title” within each object of the “fields” array. Our code defines a “title” variable where we store the value of each field title. */
const titles = payload.form_response.definition.fields.map(field => field.title);
/* The answers array is saved to a “tfAnswers” variable so this can be iterated through */
const tfAnswers = payload.form_response.answers;
/* The value of a response will change based on the type of question, to account for this we have created a function that iterates through the answers, determines what the answer type is and then, based on the type, adds the associated response to an extractedValues array. */
const extractValues = (tfAnswers) => {
const extractedValues = [];
tfAnswers.forEach((tfAnswer) => {
let result = null;
if (tfAnswer.type === 'choices') {
if (tfAnswer.choices) {
// Multiple choices
let labels = tfAnswer.choices.labels || [];
if (tfAnswer.choices.other) {
labels.push(tfAnswer.choices.other);
}
result = labels;
}
} else if (tfAnswer.type === 'choice' && Object.keys(tfAnswer.choice).length > 1) {
// Single choice
result = tfAnswer.choice && tfAnswer.choice.other ?
tfAnswer.choice.other.toString() :
tfAnswer.choice.label.toString();
} else if (tfAnswer.type === 'dropdown') {
// Dropdown
result = tfAnswer.text;
} else {
// For other types, use the type-specific value
result = tfAnswer[tfAnswer.type];
}
extractedValues.push(result);
});
return extractedValues;
};
/* We use the above defined function, passing it the “tfAnswers” variable that holds the answers portion of the Typeform webhook payload and save the output to a ”values” variable */
const values = extractValues(tfAnswers);
/* Finally, the values within the previously assigned “titles” variable and “values” variable are paired together in an object as the values to a “question” key and “answer” key in a “responses” array of objects variable. */
const results = titles.map((title, index) => {
return {
question: title,
answer: values[index],
};
});
/* The code defines a variable, "brazecall", to build a /users/track request. Within the request, the typeform title is populated as the event name, and our “results” variable (where all of our question/answer pairs are stored), is assigned as the event’s properties. */
let brazecall = {
"events": [{
"email": payload.form_response.answers.find(answer => answer.type === 'email').email,
"name": payload.form_response.definition.title,
"time": new Date().toISOString(),
"properties": {
"responses": results
}
}]
};
// After the /users/track request is assigned to brazecall, you will want to explicitly return “brazecall” to create an output
return brazecall;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
{
"events": [
{
"email": "[email protected]",
"name": "Project Feedback Survey",
"time": "2023-10-17T18:21:39.527Z",
"properties": {
"responses": [
{
"question": "Please provide your email",
"answer": "[email protected]"
},
{
"question": "What was your role in the project?",
"answer": "Lorem ipsum dolor"
},
{
"question": "How would you rate the overall performance of the team?",
"answer": 5
},
{
"question": "Did the project meet its intended outcomes?",
"answer": true
},
{
"question": "If you answered \"No\" to the previous question, please explain why. If you answered \"Yes\", skip this question.",
"answer": "Lorem ipsum dolor"
},
{
"question": "Which area of the project do you think went well?",
"answer": "Communication"
},
{
"question": "Which area of the project do you think could be improved?",
"answer": "Communication"
},
{
"question": "How satisfied were you with the level of communication during the project?",
"answer": 5
},
{
"question": "How likely are you to recommend Braze for customer engagement services?",
"answer": 5
},
{
"question": "In which country was the project executed?",
"answer": "United States"
}
]
}
}
]
}
Use case: Using identifier passed in Hidden Fields
You can use Typeform Hidden Fields to pass data in the Typeform webhook payload, such as a user’s ID, without having to pass this information in the Typeform response.
이 예제 템플릿에서는 “user_id” 숨겨진 필드를 사용하고 이를 /users/track 요청 페이로드에 external_id 로 전달하고 있습니다. “user_id”, 을 사용하고 있지만 필요에 따라 필드를 수정할 수 있습니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
/* In the Typeform webhook payload each question is stored as a “title” within each object of the “fields” array. Our code defines a “title” variable where we store the value of each field title. */
const titles = payload.form_response.definition.fields.map(field => field.title);
/* The answers array is saved to a “tfAnswers” variable so this can be iterated through */
const tfAnswers = payload.form_response.answers;
/* The value of a response will change based on the type of question, to account for this we have created a function that iterates through the answers, determines what the answer type is and then, based on the type, adds the associated response to an extractedValues array. */
const extractValues = (tfAnswers) => {
const extractedValues = [];
tfAnswers.forEach((tfAnswer) => {
let result = null;
if (tfAnswer.type === 'choices') {
if (tfAnswer.choices) {
// Multiple choices
let labels = tfAnswer.choices.labels || [];
if (tfAnswer.choices.other) {
labels.push(tfAnswer.choices.other);
}
result = labels;
}
} else if (tfAnswer.type === 'choice' && Object.keys(tfAnswer.choice).length > 1) {
// Single choice
result = tfAnswer.choice && tfAnswer.choice.other ?
tfAnswer.choice.other.toString() :
tfAnswer.choice.label.toString();
} else if (tfAnswer.type === 'dropdown') {
// Dropdown
result = tfAnswer.text;
} else {
// For other types, use the type-specific value
result = tfAnswer[tfAnswer.type];
}
extractedValues.push(result);
});
return extractedValues;
};
/* We use the above defined function, passing it the “tfAnswers” variable that holds the answers portion of the Typeform webhook payload and save the output to a ”values” variable */
const values = extractValues(tfAnswers);
/* Finally, the values within the previously assigned “titles” variable and “values” variable are paired together in an object as the values to a “question” key and “answer” key in a “responses” array of objects variable. */
const results = titles.map((title, index) => {
return {
question: title,
answer: values[index],
};
});
/* The code defines a variable, "brazecall", to build a /users/track request. Within the request, the typeform title is populated as the event name, and our “results” variable (where all of our question/answer pairs are stored), is assigned as the event’s properties. */
let brazecall = {
"events": [{
"external_id": payload.form_response.hidden.user_id,
"name": payload.form_response.definition.title,
"time": new Date().toISOString(),
"properties": {
"responses": results
}
}]
};
// After the /users/track request is assigned to brazecall, you will want to explicitly return “brazecall” to create an output
return brazecall;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
{
"events": [
{
"external_id": "hidden_value",
"name": "Project Feedback Survey",
"time": "2023-10-17T18:27:22.209Z",
"properties": {
"responses": [
{
"question": "Please provide your email",
"answer": "[email protected]"
},
{
"question": "What was your role in the project?",
"answer": "Lorem ipsum dolor"
},
{
"question": "How would you rate the overall performance of the team?",
"answer": 5
},
{
"question": "Did the project meet its intended outcomes?",
"answer": true
},
{
"question": "If you answered \"No\" to the previous question, please explain why. If you answered \"Yes\", skip this question.",
"answer": "Lorem ipsum dolor"
},
{
"question": "Which area of the project do you think went well?",
"answer": "Communication"
},
{
"question": "Which area of the project do you think could be improved?",
"answer": "Communication"
},
{
"question": "How satisfied were you with the level of communication during the project?",
"answer": 5
},
{
"question": "How likely are you to recommend Braze for customer engagement services?",
"answer": 5
},
{
"question": "In which country was the project executed?",
"answer": "United States"
}
]
}
}
]
}
4단계: Publish your Typeform webhook
After you have written your data transformation, click Validate to make your Data Transformation code is formatted correctly and will work as expected. Then, save and activate your Data Transformation.
활성화하면 사용자가 양식을 작성할 때 커스텀 이벤트 데이터가 사용자 프로필에 기록됩니다.
Monitoring and troubleshooting
See the section Monitoring your transformation for more information on monitoring and troubleshooting your transformation.
GitHub 에서 이 페이지를 편집합니다.
New Stuff!
